CONELE Mining Blender Positioning

Uniform Blending · Multi-material · Consistent Homogeneity

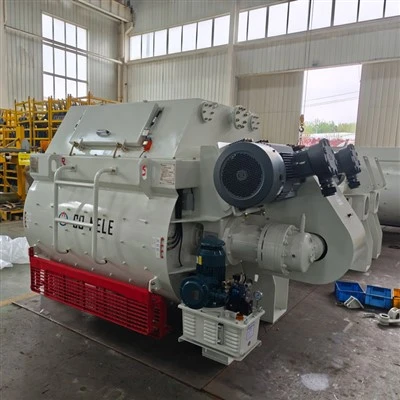

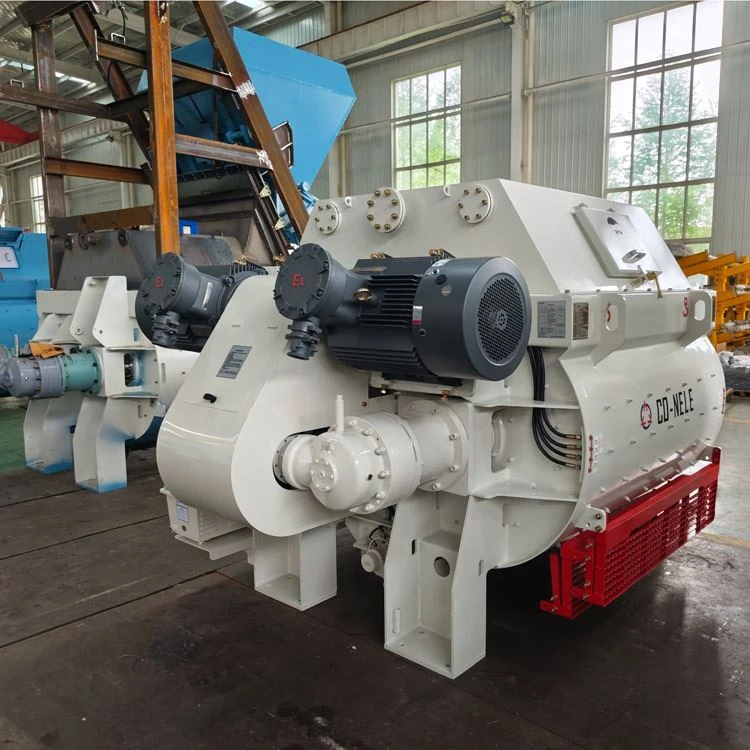

The CONELE Mining Blender is a blending unit built for multi-material homogenization in mining, dedicated to thoroughly and evenly mixing ores, binders, and additives of varying ratios into a stable, uniform mass. Unlike "mixing" that emphasizes agitation, this machine stresses uniformity and consistency, providing the homogeneous basis for backfill strength, tailings-product quality, and downstream-process stability.

Mixing-process Value

In mining, fluctuating ratios and uneven mixing directly lower backfill roof-contact rate, tailings-product yield, and system stability. The mining blender turns "dosed right" into "blended even" via controlled, continuous homogenization-making every batch consistent and traceable, cutting quality drift and rework loss at the source, and supporting refined mining production.

CONELE Mining Blender Core Features

Uniform Blending

Multi-stage structure drives full intermingling for high outlet uniformity and consistent product properties.

Multi-material Compatible

Handles ores, binders, tailings, and admixtures across recipes, flexibly switching process formulas.

Consistent Homogeneity

Stable, traceable continuous output reduces batch drift, supporting refined, standardized mining.

Wear-resistant & Durable

Wear-resistant alloy cast-iron blades and liners resist abrasion; patented self-tensioning aids long runs.

Application Processes

multi-material compatibility in mining-covering backfill batching, paste pumping, and tailings resource recovery across coal and metal mines, realizing versatile homogeneous blending with one machine.

Safety & Compliance

The unit adopts mining-safe design, is certified with the CMAC mining-product safety mark, and uses MA-system certified core parts-meeting mining safety standards from structure to components, safeguarding operation qualification and personnel/equipment safety.

FAQ

Q:Can you provide custom‑modified underground mixer for special tunnel/mining dimension limits?

A:Yes. We can modify overall height, width, discharge orientation, and configure explosion‑proof electric system according to site dimension constraints. Please provide your underground site drawing and working condition parameters for technical proposal.

Q: Mixing uniformity is poor, material segregation occurs. What should I check?

A:1) Check wear degree of blades and mixing arms; replace severely worn parts.

2) Confirm material feeding sequence and feeding proportion.

3) Check actual mixing cycle time, do not shorten mixing time blindly to pursue output.

4) Check whether foreign large stones jam mixing chamber.

Q: Abnormal loud noise appears during mixer running underground.

A:Stop machine immediately for inspection. Possible causes: stones jam between blade and liner; bearing damage; loose mixing‑arm bolts; gearbox lack of lubrication oil. Remove jamming stones; tighten bolts; replace damaged bearing; replenish gearbox lubricant oilCO-NELE

Q:How to reduce wear of underground mixer in high‑abrasive mine material?

A:1) Adopt CO‑NELE high‑chromium wear‑resistant alloy blades and liners;

2) Keep proper gap between blade and liner (≤6 mm);

3) Avoid feeding oversized aggregate;

4) Check bolt fastening status every week to prevent loose wear‑partsCO-NELE
