Name: China CONELE Mining Twin-shaft Mixer Manufacturers Suppliers Factory - Co-Nele Intelligent Equipment
Brand: CO-NELE
SKU: 314698985

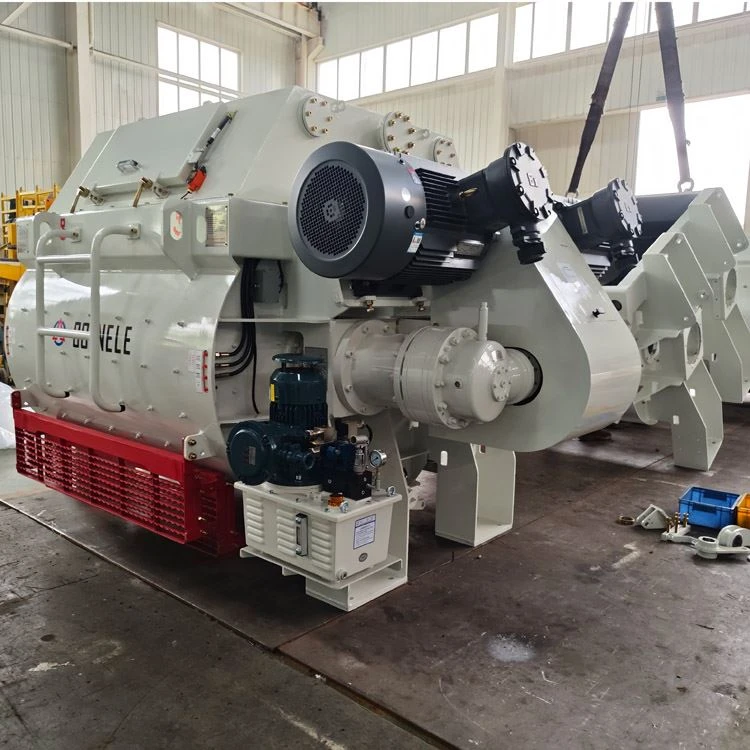

CONELE Mining Twin-shaft Mixer Positioning

Precise Batching · Material-adaptive · Steady Uniform Output

The CONELE Mining Material Blender is a precise blending unit for the front end of mining material handling, focused on "dosed right, fed steady, blended even." It integrates batching, feeding, and blending into one machine, dosing accurately by set ratio and blending uniformly-so downstream backfilling, beneficiation, or recovery starts from a reliable material basis. It is the front-end hub of continuous mining production.

Structural Value

The ceiling of blending quality is often set by batching and feeding precision. Wrong ratio or uneven feed can't be fully rescued by strong agitation. The mining material blender puts "precise batching" and "even feeding" at the blending stage itself, locking recipe accuracy at the source, cutting segregation, deviation, and rework, and providing stable, trustworthy material input for the whole process chain.

CONELE Mining Twin-shaft Mixer Core Features

Twin-shaft Counter-flow

Two counter-rotating shafts drive strong material convection, removing dead zones.

Efficient & Uniform

Uniform mixing in a short cycle, shortening time and raising per-hour output.

Low Residue & Easy Clean

Smooth discharge with low residue, easing batch change and cleanup.

Wear-resistant & Durable

Wear-resistant alloy cast-iron blades and liners resist abrasion; patented self-tensioning aids reliability.

Application Processes

Suitable for bulk mining mixing, high-concentration homogenization, intermittent batch-change production, and continuous mixing of abrasive coal/metal-ore materials. The twin-shaft high throughput and low residue fit bulk continuous backfill and tailings blending especially well.

Safety & Compliance

The unit adopts mining-safe design, is certified with the CMAC mining-product safety mark, and uses MA-system certified core parts-meeting mining safety standards from structure to components, safeguarding operation qualification and personnel/equipment safety.

FAQ

Q:What are key parts that need regular cleaning for underground mixer?

A:Mixing blades, mixing arms, discharge door sealing surfaces, shaft end sealing assemblies. Underground dust and concrete residue easily accumulate. Use high‑pressure water washing after shutdown; remove material residue to prevent material caking which causes jamming on next startup

Q: Mixing uniformity is poor, material segregation occurs. What should I check?

A:Main causes: overloading feeding; worn mixing blades leading to big blade‑liner gap and extra resistance; poor underground ventilation causing heat accumulation; unstable power supply voltage. Solutions: reduce single‑batch feeding volume; inspect & replace worn wear parts; improve site ventilation; check power supply.

Q: Abnormal loud noise appears during mixer running underground.

A:Stop machine immediately for inspection. Possible causes: stones jam between blade and liner; bearing damage; loose mixing‑arm bolts; gearbox lack of lubrication oil. Remove jamming stones; tighten bolts; replace damaged bearing; replenish gearbox lubricant oilCO-NELE

Q:How to reduce wear of underground mixer in high‑abrasive mine material?

A:1) Adopt CO‑NELE high‑chromium wear‑resistant alloy blades and liners;

2) Keep proper gap between blade and liner (≤6 mm);

3) Avoid feeding oversized aggregate;

4) Check bolt fastening status every week to prevent loose wear‑partsCO-NELE
